Build specifics

This project was created by Karolina Dubiel for Impact Hacks '23 (11/10 - 11/12)

Click to skip to technical details 👇

Submission Details

Submission Track: Healthy People & Planet SDG 11: Sustainable Cities and Communities & 15: Life on Land

Submitted to Challenge: Umi Feeds Challenge

Submission type: Interdisciplinary (paper + tech solution)

View the policy paper

View the demo video

This submission takes on a novel "square zero" approach to the idea of creating city green space:
we can't create effective green space unless both the public and businesses understand the dire need for their creation.

Aside from the negative impact on the mental and physical health of citizens, one of the top consequences of lack of green space is increased particle pollution. As particle pollution isn't usually visible to humans, it's easy to pretend that it doesn't exist, and therefore, enables citizens to ignore the problem or be less inclined to support public policy initiatives to create more green space.

Pollutant information

Information via epa.gov:

O³: Ozone is both natural and man-made and has both beneficial and adverse affects on human health. In the atmosphere, it shields humans from harmful UV exposure, but when inhaled, it undergoes dangerous chemical reactions with molecules in the respiratory tract.

SO²: sulfur dioxide is primarily emitted through fossil fuel combustion. Increased sulfur dioxide concentration leads to increase particulate matter (PM) pollution.

PM2.5: PM2.5 refers to a class of ultra-fine particulate pollutants, with diameters under 2.5 micrometers.

PM10: PM10 refers to a class of ultra-fine particulate pollutants, with diameters under 10 micrometers.

NH³: Ammonia is a toxicant that typically arises from waste. Large amounts of ammonia can lead to decreased respiratory function, reduction of Na⁺ to potentially fatal levels, and disruption of blood vessels.

Green Spaces and Pollutants

Cities with the most green spaces strongly overlap with cities with lowest particle pollution (data from tpl.org):

Singapore and Zurich:

both of these cities top global green space statistics, with close to or over 50% of parks and gardens being public green space.

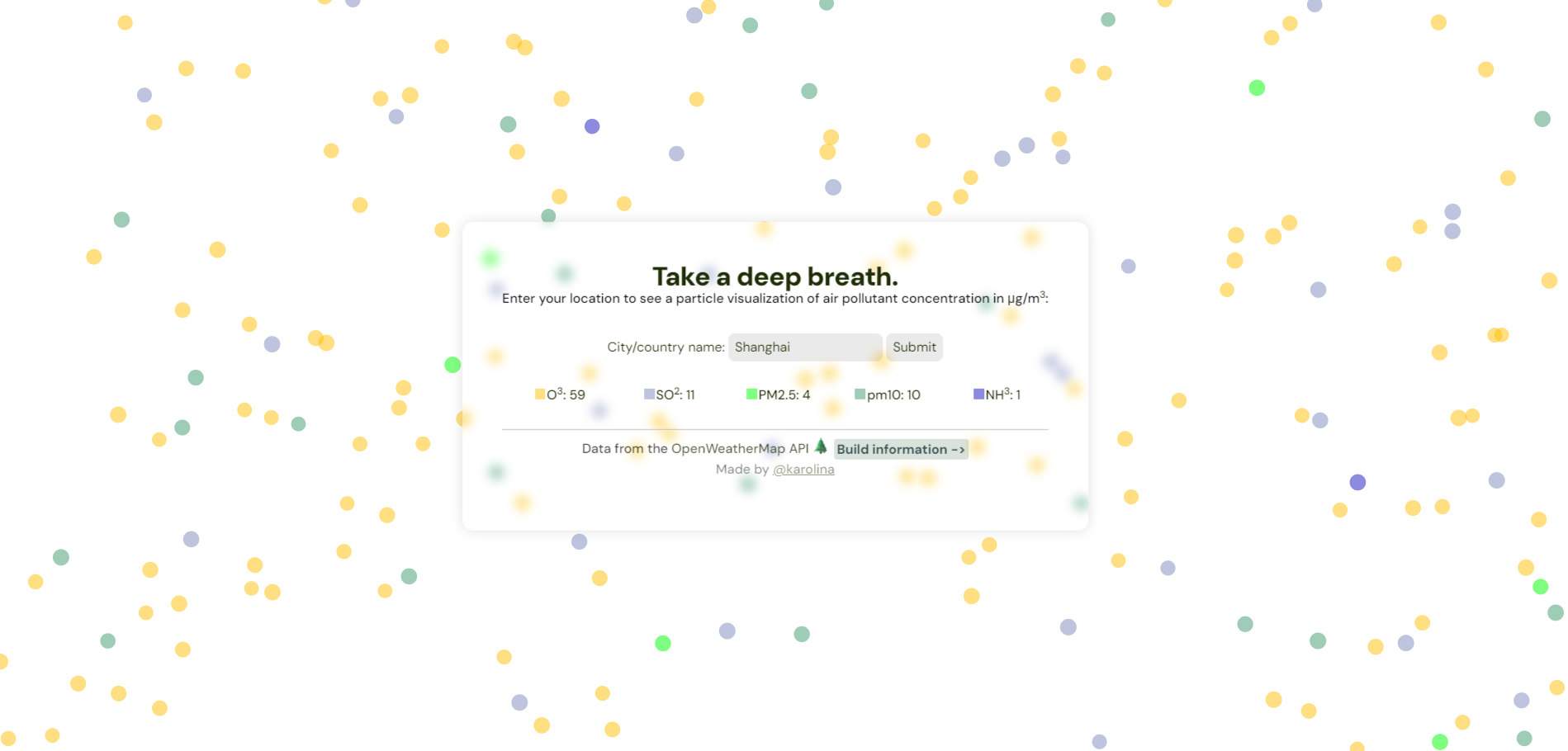

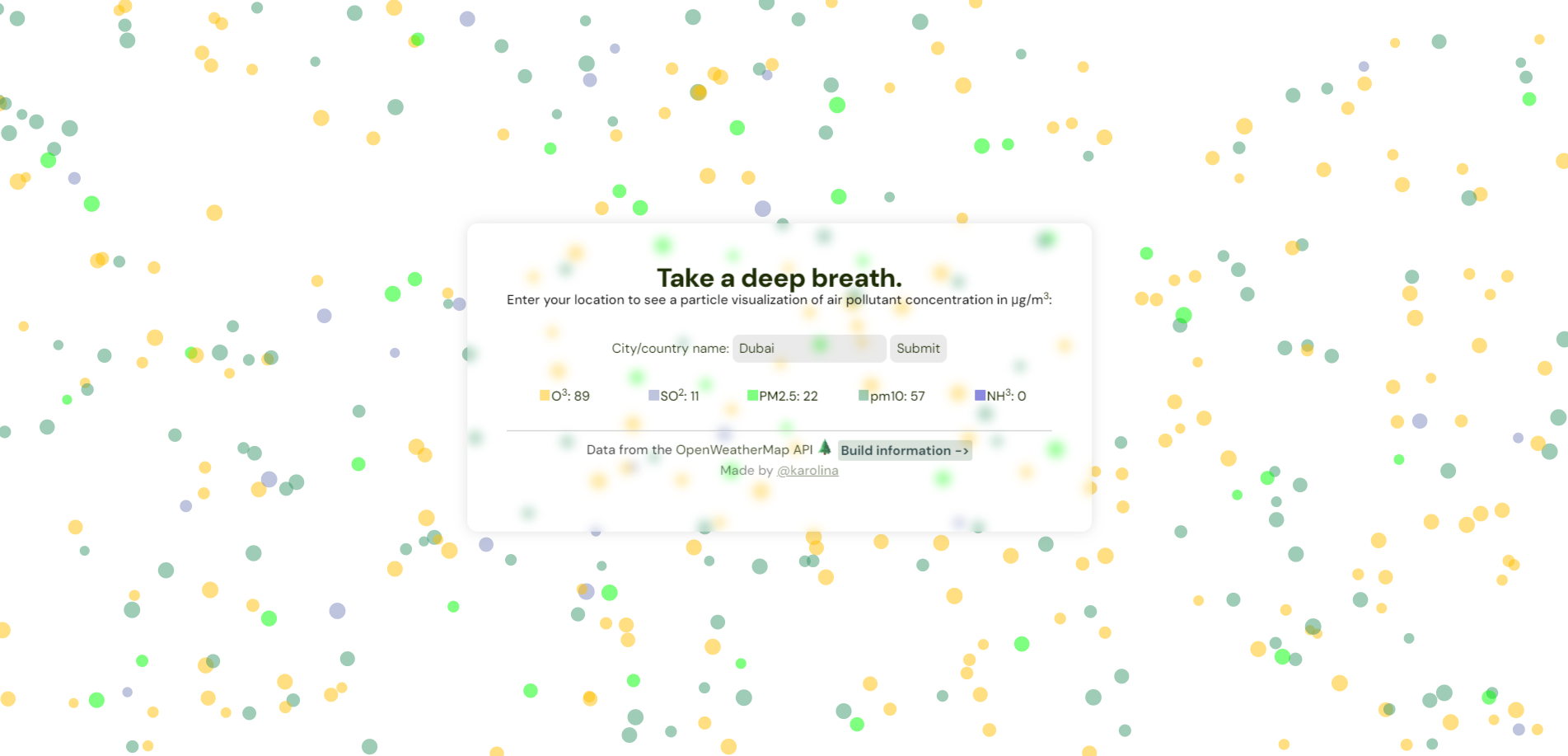

Dubai and Shanghai:

both of these cities have less than 2% public green space, and much higher pollution rates than Singapore and Zurich, despite having lower population densities than Singapore and Zurich, respectively.

Technical Details

This project was primarily built using the Particle.JS library by Vincent Garreau and the OpenWeatherMapAPI.

Upon the click of "Submit", the program makes a query through the Geocoder API to translate city name into coordinates.

http://api.openweathermap.org/geo/1.0/direct?q=${cityName}&limit=1&appid=${apiKey}

Once coordinates are fetched, a separate request is made for each of the 5 pollutant quantities at the given coordinates:

https://api.openweathermap.org/data/2.5/air_pollution?lat=${latitude}&lon=${longitude}&appid=${apiKey}

From this data, the updateParticleLabel() loads the number of each particle present in 1 cubic meter of air.

The generateColorArray method is called. This method creates an array of 50 hex codes, each corresponding to one of the 5 colors representing particle pollutants.

Using the total number of particles, the percent of each particle out of the total pollutants is determined and rounded to the nearest integer. Based on this data, the array is populated so that the percent of each element determines the number of elements with the corresponding hex code (for example, if pm2.5 is 4% of total pollution, 2 elements will have the pm2.5 hex value).

*Particle.JS doesn't inherently support being able to load x particles of x color (particle colors can be randomly chosen from an array, however, it's not possible to load, for example, 3 green particles and 4 red particles.) For this reason, while the particles on-screen are mostly accurate (in terms of ratio) to the numbers shown in the label, they don't exactly reflect this value. The workaround used was populating an array that reflected the percentage of each pollutant so that "randomly" chosen values would reflect desired percentages as closely as possible.
